Webinar Platform Architecture

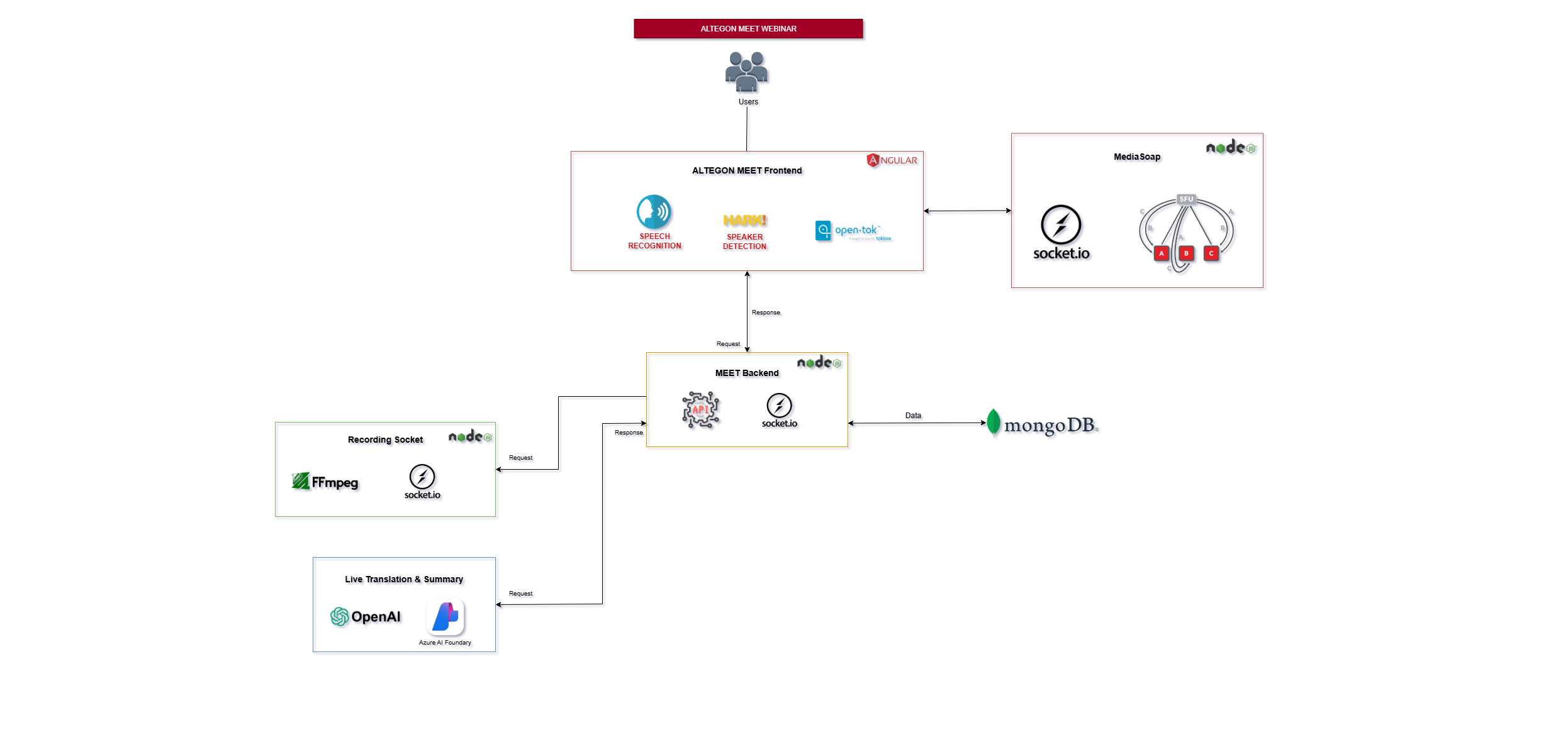

Webinar Architecture

Architecture Overview

The Webinar Platform is a sophisticated solution designed for structured, presentation-focused events that combines high-quality real-time communication with scalable streaming capabilities. Built on the powerful Mediasoup library, it supports interactive webinars ranging from intimate 10-person sessions to large-scale events with 10,000+ attendees. The architecture provides role-based interfaces, real-time engagement tools, AI-powered transcription, and comprehensive analytics.

System Components

Frontend Layer

The frontend provides distinct interfaces optimized for different participant roles:

1 Host & Co-Host Interface

  • Purpose: Full-featured control panel for webinar presenters and moderators
  • Built With: Angular framework with specialized webinar components
  • Key Features:
  • Presentation Controls:
    • Start/stop webinar sessions
    • Screen sharing with application/window selection
    • Camera and microphone management
    • Recording start/stop controls
  • Participant Management:
    • Attendee list with real-time status
    • Spotlight specific speakers
    • Promote attendees to co-host
  • OpenTok Layout Library:
    • Dynamic video layout management
    • Automatic layout switching based on content
  • Hark Integration: Active speaker detection
  • Speech Recognition:
    • Real-time transcription of host/co-host speech
    • Live caption generation for accessibility
  • Analytics Dashboard: Real-time attendee metrics and engagement stats

2 Viewer Interface

  • Purpose: Streamlined viewing experience for webinar attendees
  • Technology: Lightweight Angular interface optimized for performance
  • Key Features:
  • Viewing Experience:
    • High-quality video playback via Mediasoup
    • Adaptive quality based on network conditions
    • Layout optimized for presentations
  • Live Captions: Real-time transcription display

Backend Services

The backend orchestrates all webinar logic, user management, and real-time coordination:

1 REST API Endpoints

  • Key Endpoints:
  • Webinar Management:
    • Create webinars
    • Update webinar settings and configurations
  • Participant Management:
    • Host/co-host authentication
    • Attendee registration and approval
    • Role assignments and privileges
    • Attendee list retrieval
  • Content Management:
    • Recording access and download
    • Transcript and summary retrieval
  • Analytics & Reporting:
    • Attendee statistics
    • Engagement metrics
    • Post-webinar reports
    • Export functionality

2 Socket.IO Events (Real-time Communication)

  • Webinar Room Management:
    • Create webinar rooms with capacity limits
    • Manage host, co-host, and attendee connections
    • Handle room lifecycle (setup, live, ended)
    • Enforce role-based access control
  • Real-time Statistics Collection:
  • Attendee Tracking:
    • Live participant count
    • Connection quality metrics
  • Geographic Analytics:
    • Participant's location (city and country)
    • Regional distribution mapping

Database Layer

MongoDB

  • Purpose: Centralized storage for all webinar data
  • Stored Data:
  • Webinar Sessions: Webinar metadatas
  • Analytics & Statistics:
    • Total attendee count
    • Geographic distribution
  • Recordings & Transcripts:
    • Recording file paths and metadata
    • Complete transcriptions with timestamps
    • AI-generated summaries

Recording Server

A dedicated microservice responsible for video recording and processing:

Key Features:

  • FFmpeg Integration:
    • Processes incoming video blobs in real-time
    • Creates video segments for efficient streaming
    • Encodes final output to MP4 format
  • Storage Management: Saves processed recordings to designated file paths
  • Socket Communication: Send and Receives video blob data via Socket.IO events
  • Processing Pipeline:
    1. Receives raw video blob from active meeting
    2. Processes and segments video using FFmpeg
    3. Creates optimized MP4 file
    4. Stores recording at configured storage location

Transcription & Summary Generation Component

An AI-powered service for generating meeting transcripts and summaries:

Transcription Service

  • Technology: Azure AI Foundry Model
  • Function: Converts spoken audio to accurate text transcription
  • Features: Real-time transcription during meetings

Summary Generation

  • Technology: OpenAI Model (GPT-based)
  • Function: Analyzes complete transcription to generate concise meeting summaries
  • Output: Meeting overview for quick review

Mediasoup Server (Webinar Video Engine)

The Mediasoup Server is the core real-time communication engine that powers the webinar's audio/video functionality:

What is Mediasoup?

Mediasoup is a cutting-edge WebRTC Selective Forwarding Unit (SFU) that enables efficient, scalable real-time media communication. Unlike traditional peer-to-peer WebRTC or MCU (Multipoint Control Unit) architectures, Mediasoup uses a more efficient approach ideal for webinars.

Mediasoup Architecture in Our Platform:

Core Mediasoup Concepts:

  1. Producers
  2. Definition: A producer represents an outgoing media stream (audio or video) from a participant
  3. In Webinar Context:
  4. Host Producers:
    • Camera video producer (host's webcam)
    • Screen sharing producer (presentation/demo)
    • Microphone audio producer (host's voice)
  5. Co-Host Producers:
    • Camera and audio producers when speaking
    • Additional screen sharing if needed

Producer Properties:

  • ID: Unique identifier for the producer
  • Kind: "audio" or "video"
  • RTP Parameters: Codec, bitrate, resolution settings

  • Paused State: Can be paused/resumed without destroying

  • Consumers

Definition A consumer represents an incoming media stream that a participant receives In Webinar Context

Each attendee has consumers for:

  • Host's camera video
  • Host's screen share
  • Host's audio
  • Co-host's media (if present)

Consumer Properties

  • ID: Unique identifier
  • Producer ID: Which producer it's consuming from
  • Kind: "audio" or "video"
  • Layers: For simulcast (multiple quality levels)

  • Priority: For bandwidth management

  • Routers

Purpose Mediasoup Router manages all producers and consumers for a webinar session

Functions

  • Creates and manages producers/consumers
  • Routes media between participants
  • Handles codec negotiation
  • Manages bandwidth allocation

Data Flow Architecture

Complete Webinar Workflow:

Phase 1: Webinar Setup & Registration

  • Webinar Creation: Host creates webinar via REST API
  • Database Entry: MongoDB stores webinar metadata
  • Attendee Registration:
    • Users register with required information
    • Approval workflow (if required)

Phase 2: Webinar Start (Host Preparation)

  • Host Login: Authentication via REST API
  • Room Creation: Backend creates Mediasoup router via Socket.IO

  • Producer Setup:

    • Host connects to Mediasoup server
    • Creates camera video producer
    • Creates microphone audio producer

  • Transcription Activation: Azure AI Foundry starts listening

  • Recording Initialization: Recording server prepares for capture

Phase 3: Attendees Join

Access Control: Token validation for registered attendees Socket Connection: Attendees connect via WebSocket Room Join: Backend adds attendee to webinar room Consumer Creation: - Request available producers (host's camera, audio, screen) - Create consumers for each producer - Mediasoup routes media streams

Phase 4: Live Webinar (Active Session)

  • Real-time Transcription (if enabled): Transcription generated and boadcast to all attendees via WebSocket

  • Chat: Messages sent via WebSocket and broadcast to participants

Phase 5: Webinar End

  • Host Ends Session: Closes all producers
  • Attendee Disconnection: All consumers gracefully closed

  • Recording Finalization:

    • Recording Server processes final segments
    • FFmpeg creates final MP4 file
    • File uploaded to storage

  • Final Statistics: Complete session data saved to MongoDB

Phase 6: Post-Webinar Processing

  • Summary Generation: OpenAI GPT receives complete transcript and analyzes content structure and themes
  • Analytics Report:
    • Attendance statistics compiled
    • Geographic distribution mapped

Mediasoup Details

Core Components:

1. Workers

  • Node.js child processes that handle media routing
  • Each worker runs independently on a CPU core
  • Load balancing across workers for scalability

2. Routers

  • Created within workers
  • Each webinar session gets its own router
  • Handles all producers and consumers for that session
  • Manages RTP (Real-time Transport Protocol) streams

3. Transports

WebRTC transport connections between clients and server - Two types: - Plain Transport: For server-to-server communication - WebRTC Transport: For client-to-server communication

Each client typically has: - One send transport (for producers) - One receive transport (for consumers)

4. RTP Parameters

  • Defines media stream characteristics:

    • Codec: VP8, VP9, H.264 for video; Opus for audio
    • Bitrate: Maximum and target bitrates
    • Resolution: Video dimensions
    • Frame rate: For video streams
